110-M-445 (-R)
Coupler
Threaded insert on both sides
GENERAL INFORMATION
TECHNICAL DATA
Over Voltage Category
III
III
II
Pollution Severity Level
3
2
2
Rated Voltage
160 V
160 V
320 V
Rated Impulse Voltage
2.5 kV
2.5 kV
2.5 kV
Rated current: 8 A
Rated insulation voltage: 130 V acc. to EN 60998-1
RATINGS
|
Current [A] |
Voltage [V] |
Group |
AWG |
Torque [Nm] |
|
|---|---|---|---|---|---|
|
8 | 300 | B | ||
|
8 | 300 | B |
Download PDF

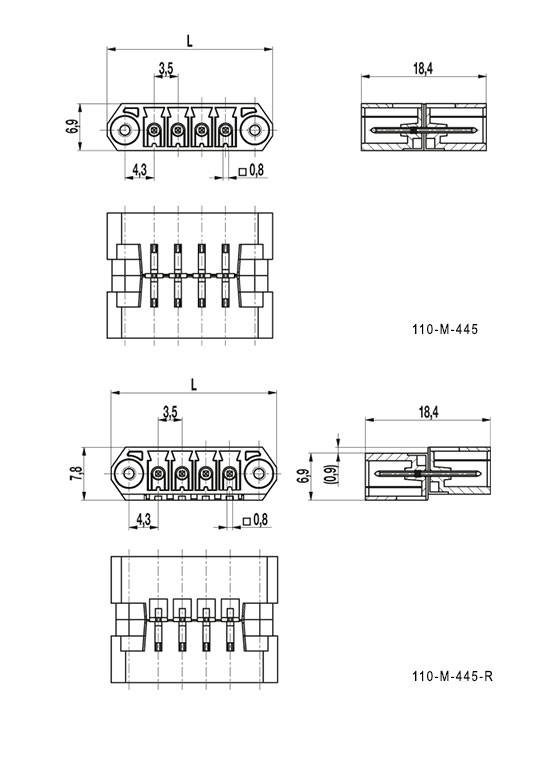

TECHNICAL DRAWINGS
MATERIALS
Moulding: PA, grey, V-0
Comparative tracking index: CTI ≥ 600
Insulating group: I
Temperature range: -40°C up to 100°C
Solder pin: 0,8 x 0,8 mm; tin plated brass
OPTIONS / ACCESSORIES
- Marking according to customer requirement
- Self-adhesive marking strip BST-3,50
