971-SLR-SMD-1.1

Stiftleiste für SMD

Steckbereich ø 1,1 mm

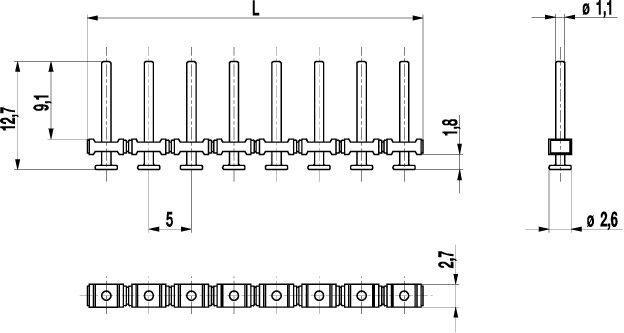

Technische Zeichnungen

971-SLR-SMD-1.1 - technical drawing 1

PCB Layout

971-SLR-SMD-1.1 - technical drawing 2

DESCRIPTION

971-SLR-SMD is a pin strip with a pitch of 5 mm for the application in a reflow soldering process. In contrary to the well-known pin rows 971-SLR and 971-SLR-THR, for which holes in the PCB are necessary, the SMD types of WECO base on true surface assembly. Soldering expanses at the end of the pins guarantee optimal retention force on the printed circuit board. We recommend this pin strip with a diamter of 1,1 in the mating area for higher numbers of poles, in order to minimize the plug-in and withdrawal forces here. Just like all THR versions of WECO also the housings of the SMD series are made out of high temperature resistant plastic material and exhibit a very high CTI value. For the automatic assembling all pin strips of this series are packed in Tape-on-Reel and equipped with high temperature resistant Pick Caps, which can easily be removed after the soldering process.

Standardausführungen

Polzahl Master Item Artikel # Länge L [mm] Step 3D PDF
02 971-SLR-SMD-1.1/02 12.893.822 9.50
03 971-SLR-SMD-1.1/03 13.893.822 14.50
04 971-SLR-SMD-1.1/04 14.893.822 19.50
05 971-SLR-SMD-1.1/05 15.893.822 24.50
06 971-SLR-SMD-1.1/06 16.893.822 29.50
10 971-SLR-SMD-1.1/10 20.893.822 49.50
12 971-SLR-SMD-1.1/12 22.893.822 59.50
Download PDF Order

Allgemeine Daten

Raster: 5.00 mm

Polzahlen: 2 - 12

Verwendbar mit: plugs with 115-F-.../..-1,1-SW; 950-FL-DS, TFL-DS, NAF-DS, GFL-DS, NLFL-DS, RFL-DS series

Technische Daten

Überspannungskategorie

III

III

II

Verschmutzungsgrad

3

2

2

Bemessungsspannung

III

III

II

Bemessungsstoßspannung

2.5 kV

2.5 kV

2.5 kV

Bemessungsstrom: 10 A

Soldering Process: Reflowlöten

Isolationsspannung: 130 V nach EN 60998-1

Materialdaten

Formen: PA HT, black, V-0

Kriechstromfestigkeit: CTI ≥ 600

Isolierstoffgruppe: I

Temperaturgrenzen: -40°C up to 120°C; reflow solder temperature peak max. 255°C acc. to DIN EN 61760-1

Lötstift: ø 1.1 mm (plug-in area); tin plated brass

Zulassungen

Strom
[A]
Spannung
[V]
Gruppe

AWG

Nenndrehmoment
[Nm]
10 [1] 300 B
10 300 B

OPTIONS / ACCESSORIES

  • Fortlaufende Nummerierung
  • Sonderbeschriftung nach Zeichnung
  • Selbstklebende Bezeichnungsstreifen
  • Andere Steckerstiftlängen auf Anfrage
  • Andere Oberflächen der Lötstifte auf Anfrage
