971-SLR-THR-1.3

Stiftleiste für THR

Löt-/Steckbereich ø 1,3 mm


DESCRIPTION

971-SLR-THR-1,3 is a pin strip with a pitch of 5 mm for the application in a reflow soldering process. The high temperature resistant plastic housing has a very high CTI value and is equipped with spacers, so-called "Stand-offs", which ensure a better hot-air circulation during the reflow soldering process in the convection oven. Beyond this, they assure an improved optical control of the solder joints. The pin strip 971-SLR-THR-1,3 comes with a constant pin ø of 1,3 mm and is usable with all WECO plug connectors (see general information). Furthermore we recommend this pin strip for small numbers of poles and for the series of 115-F for all numbers of poles. The obtained plug-in and pull-out forces are comfortable. For the automatic assembling all pin strips of this series are packed in Tape-on-Reel and equipped with high temperature resistant Pick Caps, which can easily be removed after the soldering process.

GENERAL INFORMATION

Pitch: 5.00 mm

No. of poles: 2 - 12

Usable with: plugs with 115-F, 950-FL-DS, TFL-DS, NAF-DS, GFL-DS, NLFL-DS, RFL-DS series

TECHNICAL DATA

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

III

III

II

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated current: 10 A

Soldering Process: Wellenlöten & Reflowlöten

Rated insulation voltage: 250 V nach EN 60998-1

Hole in PCB: ø 1.6 mm

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
10 [1] 300 B
10 [1] 300 B
Download PDF How to Order

TECHNICAL DRAWINGS

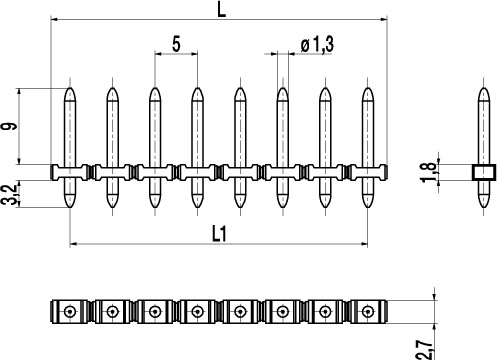

971-SLR-THR-1.3.JPG - technical drawing 1

PCB Layout

971-SLR-THR-1.3 - technical drawing 2
https://wecoconnectors.com/wp-content/uploads/Images/971-SLR-THR-1.3-LPL.JPG - technical drawing 1

PCB Layout

971-SLR-THR-1.3 - technical drawing 2

MATERIALS

Moulding: PA HT, black, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 120°C; reflow solder temperature peak max. 255°C acc. to DIN EN 61760-1

Solder pin: ø 1.3 mm; tin plated brass

OPTIONS / ACCESSORIES

  • Fortlaufende Nummerierung
  • Sonderbeschriftung nach Zeichnung
  • Selbstklebende Bezeichnungsstreifen
  • Andere Steckerstiftlängen auf Anfrage
  • Andere Oberflächen der Lötstifte auf Anfrage

Notes

STANDARD CONFIGURATIONS

Poles Items Part # Length L [mm] Step 3D PDF
02 971-SLR-THR-1.3/02 12.893.805 9.50
03 971-SLR-THR-1.3/03 13.893.805 14.50
04 971-SLR-THR-1.3/04 14.893.805 19.50
05 971-SLR-THR-1.3/05 15.893.805 24.50
06 971-SLR-THR-1.3/06 16.893.805 29.50
08 971-SLR-THR-1.3/08 18.893.805 39.50
10 971-SLR-THR-1.3/10 20.893.805 49.50
11 971-SLR-THR-1.3/11 21.893.805 54.50
12 971-SLR-THR-1.3/12 22.893.805 59.50
