110-A-111

Plug Connector

Screw connection


DESCRIPTION

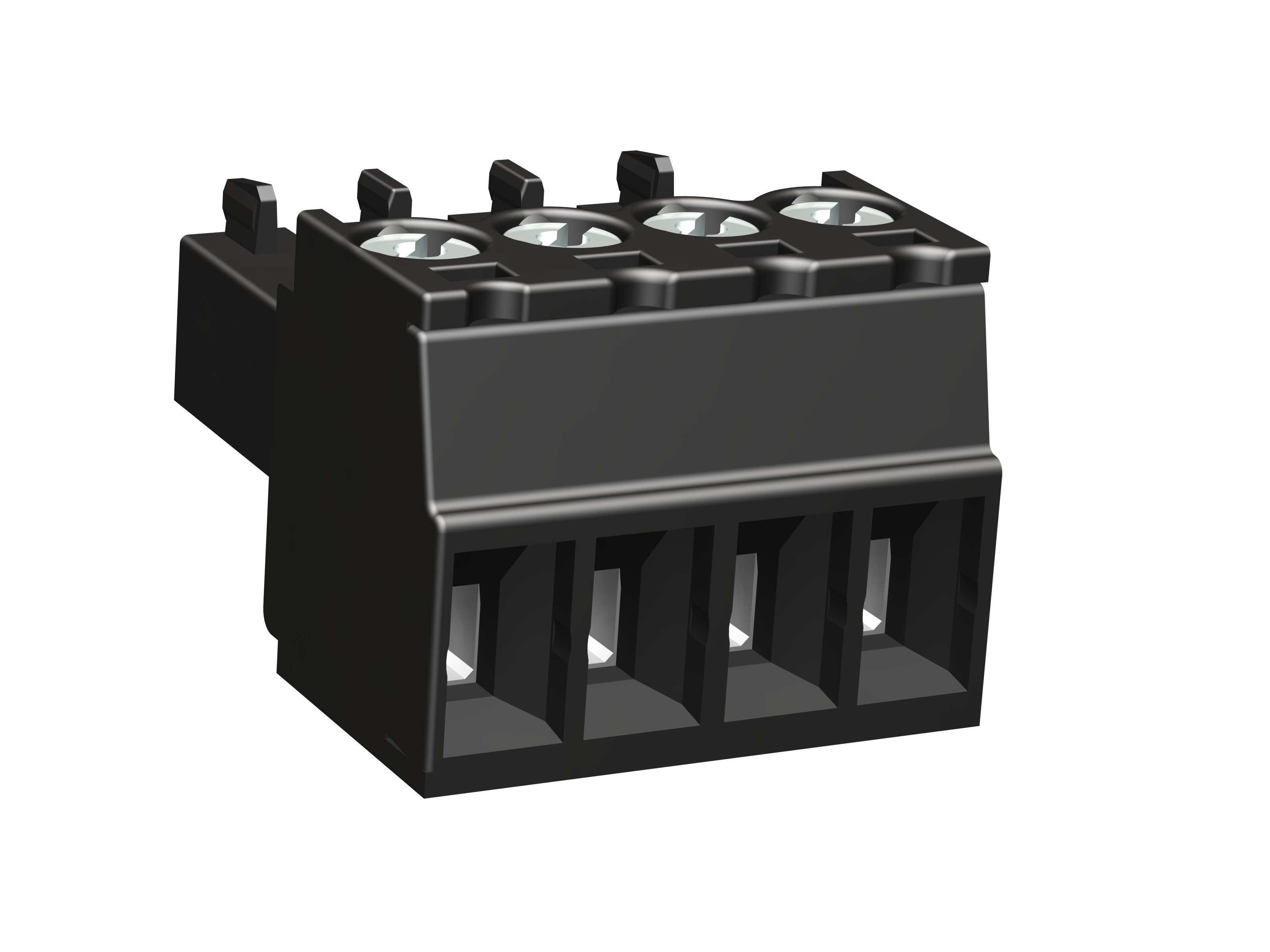

The plug connector 110-A-111 with a pitch of 3,5 mm is available in 2- to 24-pole design. For its small dimensions it offers remarkable connection data (1.5 mm² / 160 V-III-3 / 8 A). The high-quality elevator system guarantees reliable connection of all conductor types. As standard, the plug connector has coding nips which can be cut off, if necessary.

GENERAL INFORMATION

Pitch: 3.50 mm

No. of poles: 2 - 24

Usable with: all headers of 110-M, P, S, V-111, 121, 211, 221 series

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
8 300 B, D 30 - 16 0.2
8 300 B 30 - 16 0.2
Download PDF How to Order

TECHNICAL DRAWINGS

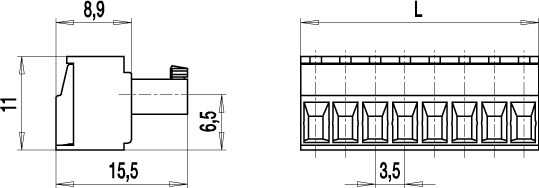

110-A-111.JPG - technical drawing 1

MATERIALS

Moulding: PA, grey, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 100°C

Terminal body: Nickel plated brass

Spring: Tin plated tin bronze

Pressure clamp: Tin plated tin bronze

Screw: M2; tin plated tin bronze

OPTIONS / ACCESSORIES

  • Consecutive numbering
  • Special marking according to drawing
  • Self-adhesive marking strip BST-3,50
  • Pitch of 7 mm for larger clearance and creepage distances
  • Strain relief

STANDARD CONFIGURATIONS

Poles Items Part # Length L [mm] Step 3D PDF
02 110-A-111/02 10.840.002 7.00
03 110-A-111/03 10.840.003 10.50
04 110-A-111/04 10.840.004 14.00
06 110-A-111/06 10.840.006 21.00
07 110-A-111/07 10.840.007 24.50
08 110-A-111/08 10.840.008 28.00
09 110-A-111/09 10.840.009 31.50
10 110-A-111/10 10.840.010 35.00
11 110-A-111/11 10.840.011 38.50
12 110-A-111/12 10.840.012 42.00
13 110-A-111/13 10.840.013 45.50
14 110-A-111/14 10.840.014 49.00
15 110-A-111/15 10.840.015 52.50
16 110-A-111/16 10.840.016 56.00
17 110-A-111/17 10.840.017 59.50
18 110-A-111/18 10.840.018 63.00
19 110-A-111/19 10.840.019 66.50
20 110-A-111/20 10.840.020 70.00
21 110-A-111/21 10.840.021 73.50
22 110-A-111/21 10.840.022 77.00
23 110-A-111/21 10.840.023 80.50
24 110-A-111/21 10.840.024 84.00
