120-A-111

Plug Connector

Screw connection


DESCRIPTION

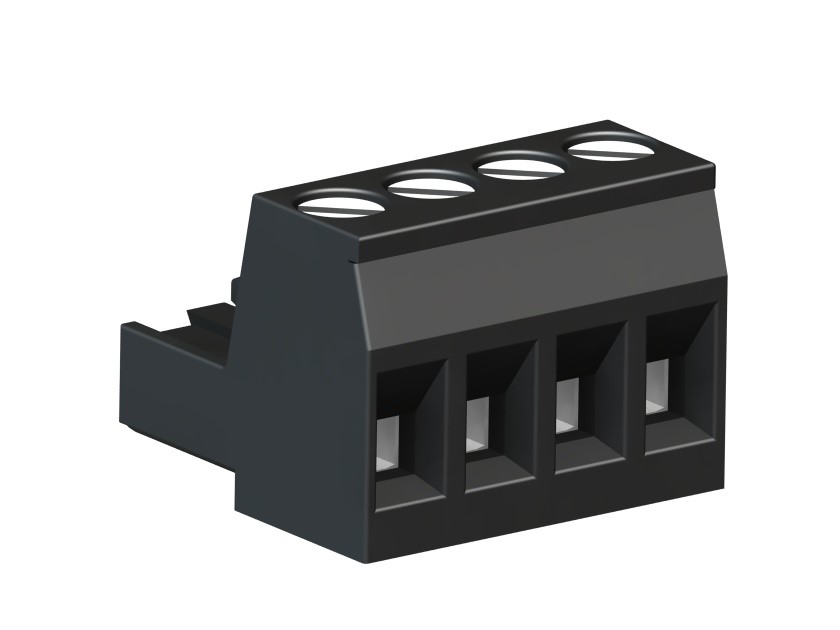

The plug connector 120-A-111, with a pitch of 5 mm, is available in 2- to 24-pole design. For each pole the plug connector has one trapezoidal coding slot in which the coding elements 120-K can be inserted. The wire entrance is parallel to the plug direction. The screws are captive.

GENERAL INFORMATION

Pitch: 5.00 mm

No. of poles: 2 - 24

Usable with: plugs with 120-M-111, 121, 191, 211, 217, 221, 291, 311 series

TECHNICAL DATA

Clamping Range:

solid / flexible / AWG
0.2 - 4 mm² / 0.2 - 2.5 mm² / 26 - 12 AWG

Rated cross section: 2.5 mm²

Wire stripping length: 7 mm ± 0.5 mm

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

250 V

320 V

630 V

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated current: 12 A

Rated insulation voltage: 250 V acc. to EN 60998-1

Torque: 0.5 Nm

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
15 300 B 26 - 12 0.51
10 300 D 26 - 12 0.51
15 300 B 26 - 12 0.51
10 300 D, E 26 - 12 0.51
Download PDF How to Order

TECHNICAL DRAWINGS

120-A-111.JPG - technical drawing 1

MATERIALS

Moulding: PA, grey, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 100°C

Terminal body: Nickel plated brass

Spring: Tin plated tin bronze

Pressure clamp: Tin plated tin bronze

Screw: M3; zinc plated steel, blue passivated

OPTIONS / ACCESSORIES

  • Consecutive numbering
  • Special marking according to drawing
  • Self-adhesive marking strip BST-5,00
  • Pitch of 10 mm for larger clearance and creepage distances
  • Coding elements 120-K
  • Connectors equipped with coding elements on request
  • Version with extended wire entrance
  • Strain relief

STANDARD CONFIGURATIONS

Poles Items Part # Length L [mm] Step 3D PDF
02 120-A-111/02 10.808.002 10.00
03 120-A-111/03 10.808.003 15.00
04 120-A-111/04 10.808.004 20.00
05 120-A-111/05 10.808.005 25.00
06 120-A-111/06 10.808.006 30.00
07 120-A-111/07 10.808.007 35.00
08 120-A-111/08 10.808.008 40.00
09 120-A-111/09 10.808.009 45.00
10 120-A-111/10 10.808.010 50.00
11 120-A-111/11 10.808.011 55.00
12 120-A-111/12 10.808.012 60.00
13 120-A-111/13 10.808.013 65.00
14 120-A-111/14 10.808.014 70.00
15 120-A-111/15 10.808.015 75.00
16 120-A-111/16 10.808.016 80.00
17 120-A-111/17 10.808.017 85.00
18 120-A-111/18 10.808.018 90.00
19 120-A-111/19 10.808.019 95.00
20 120-A-111/20 10.808.020 100.00
21 120-A-111/21 10.808.021 105.00
22 120-A-111/22 10.808.022 110.00
24 120-A-111/24 10.808.024 120.00
