327 (-HDS)

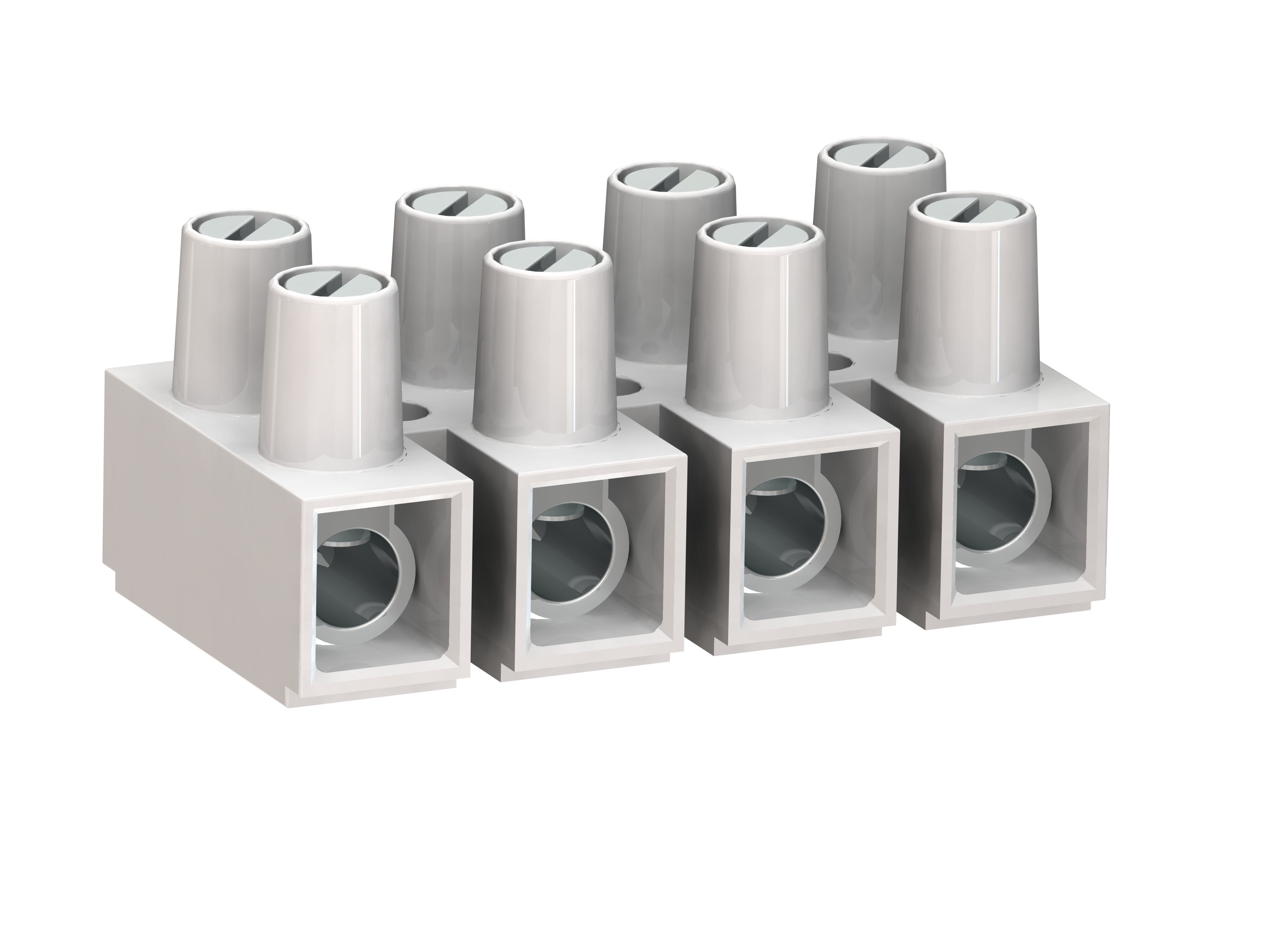

Eurostyle Terminal Strip

Screw connection


DESCRIPTION

The socket terminal strip 327 is available in 14,5 mm pitch with 1- to 12-pole design and can be easily stripped to the desired number of poles. Due to the M5 screw, the socket hole diameter of 6,3 mm and a creepage distance of more than 9 mm between terminal body and mounting surface, this version is well suited for large cross-sections, high currents and voltages. One fixing hole is located between every two poles. The flexible polyamide moulding can even be mounted on curved surfaces. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw.

GENERAL INFORMATION

Pitch: 14.50 mm

No. of poles: 1 - 12

Application: For lighting applications and similar electrical equipment.

TECHNICAL DATA

Clamping Range:

solid / flexible / AWG

without wire protector

4 - 16 mm² / 4 - 16 mm² / 12 - 4 AWG

with wire protector:

4 - 16 mm² / 4 - 10 mm² / 12 - 6 AWG

Rated cross section: 16 mm² [1]

Wire stripping length: 9 mm ± 1 mm

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

500 V

630 V

1000 V

Rated Impulse Voltage

6 kV

6 kV

6 kV

Rated current: 76 A

Rated insulation voltage: 750 V acc. to EN 60998-1

Torque: 2 Nm

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
80 300 B,C 14 - 4 1.8 [2]
80 300 B 14 - 6 1.8
80 150 C 14 - 6 1.8
Current
[A]
Voltage
[V]
Cross Section
[mm2]
AWG

TORQUE

76 750 16
Download PDF How to Order

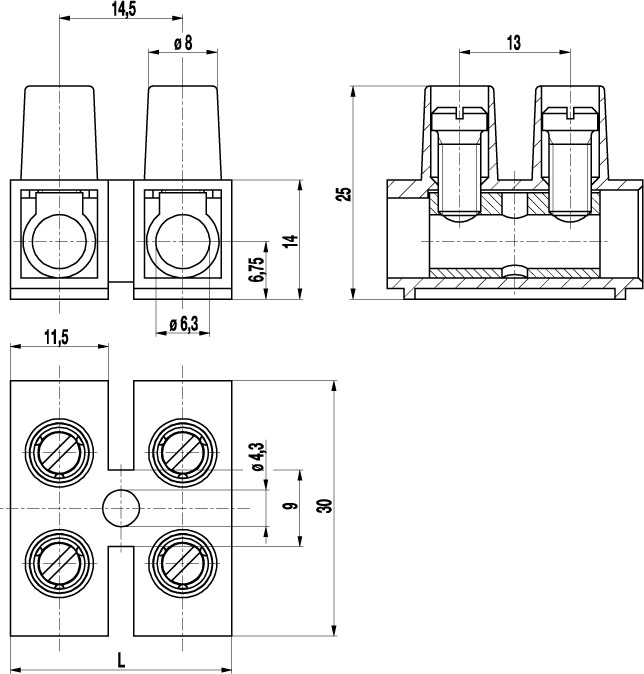

TECHNICAL DRAWINGS

327.JPG - technical drawing 1

MATERIALS

Moulding: PA, white, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 100°C

Terminal body: Nickel plated brass

Screw: M5; zinc plated steel, blue passivated

Wire protector: Stainless steel strip

OPTIONS / ACCESSORIES

  • Marking options on and between the screw guides
  • Marking strips BST-327
  • Jumper 327-J
  • G30: Gold Plating (30 micro inches)

Notes

STANDARD CONFIGURATIONS

Poles Items Part # Items Part # Length L [mm] Step 3D PDF
01 327/01 11.825.001.EN6 327-HDS/01 31.825.001.EN6 14.50
02 327/02 12.825.001.EN6 327-HDS/02 32.825.001.EN6 29.00
03 327/03 13.825.001.EN6 327-HDS/03 33.825.001.EN6 43.50
04 327/04 14.825.001.EN6 327-HDS/04 34.825.001.EN6 58.00
05 327/05 15.825.001.EN6 327-HDS/05 35.825.001.EN6 72.50
06 327/06 16.825.001.EN6 327-HDS/06 36.825.001.EN6 87.00
07 327/07 17.825.001.EN6 327-HDS/07 37.825.001.EN6 101.50
08 327/08 18.825.001.EN6 327-HDS/08 38.825.001.EN6 116.00
09 327/09 19.825.001.EN6 327-HDS/09 39.825.001.EN6 130.50
10 327/10 20.825.001.EN6 327-HDS/10 40.825.001.EN6 145.00
11 327/11 21.825.001.EN6 327-HDS/11 41.825.001.EN6 159.50
12 327/12 22.825.001.EN6 327-HDS/12 42.825.001.EN6 171.00
