327-FU (-HDS)

Eurostyle Terminal Strip

Screw connection, with elevated base

https://wecoconnectors.com/wp-content/uploads/Images/327-FU-R.JPG

DESCRIPTION

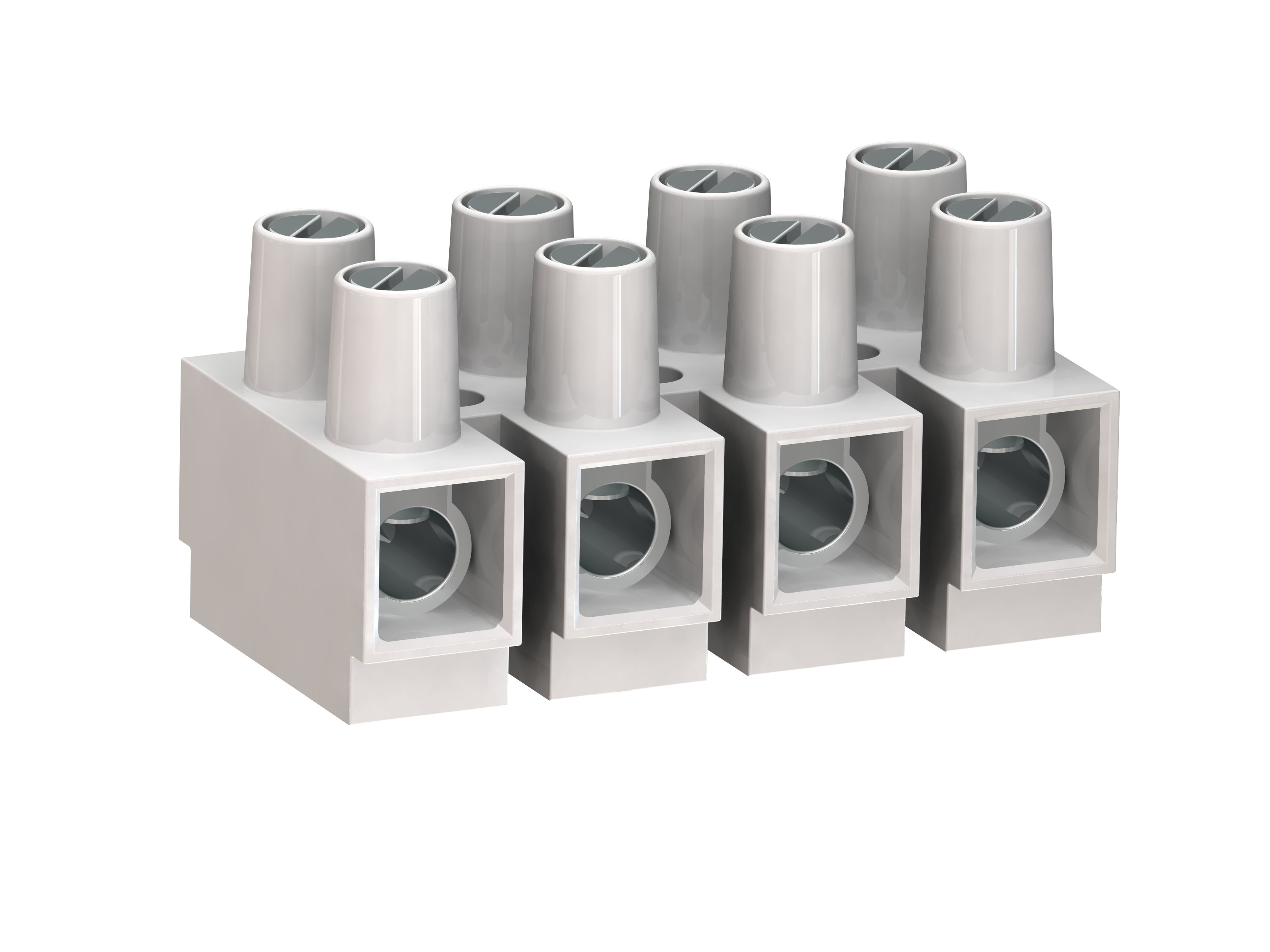

The socket terminal strip 327-FU with raised base and a pitch of 14,5 mm is available in 1 to 12 pole design. The raised base extends the creepage distance to the ground which allows 600 V in accordance with UL and CSA regulations without an additional insulating base. One fixing hole is located between every two poles. The flexible polyamide moulding can even be mounted on curved surfaces. The wire protector of the “HDS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw.

GENERAL INFORMATION

Pitch: 14.50 mm

No. of poles: 1 - 12

Application: For lighting applications and similar electrical equipment.

TECHNICAL DATA

Clamping Range:

solid / flexible / AWG

without wire protector

4 - 16 mm² / 4 - 16 mm² / 12 - 4 AWG

with wire protector:

4 - 16 mm² / 4 - 10 mm² / 12 - 6 AWG

Rated cross section: 16 mm² [1]

Wire stripping length: 9 mm ± 1 mm

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

1000 V

1000 V

1000 V

Rated Impulse Voltage

8 kV

8 kV

6 kV

Rated current: 76 A

Rated insulation voltage: 750 V acc. to EN 60998-1

Torque: 2 Nm

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
65 600 B,C 14 - 6 1.8
80 600 B,C,D,E 14 - 6 1.8
Current
[A]
Voltage
[V]
Cross Section
[mm2]
AWG

TORQUE

76 750 16
Download PDF

TECHNICAL DRAWINGS

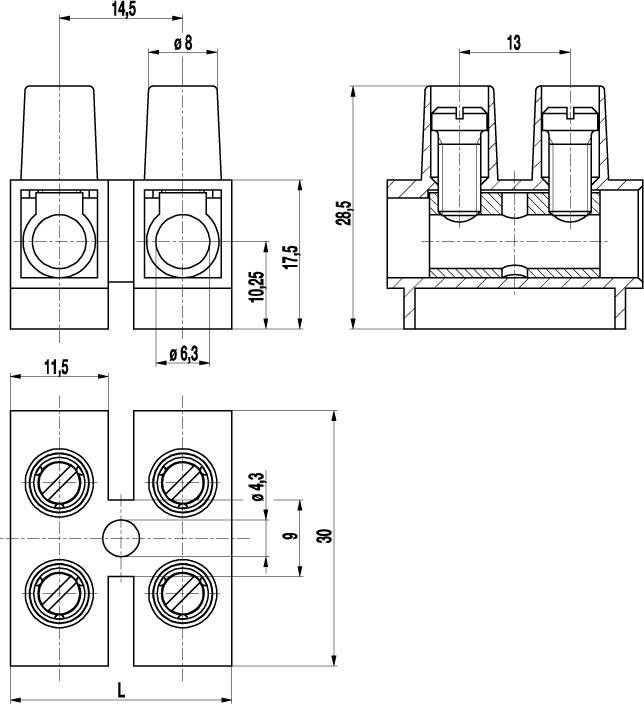

327-FU.JPG - technical drawing 1

MATERIALS

Moulding: PA, white, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 100°C

Terminal body: Nickel plated brass

Screw: M5; zinc plated steel, blue passivated

Wire protector: Stainless steel strip

OPTIONS / ACCESSORIES

  • Marking options on and between the screw guides
  • Marking strips BST-327
  • Jumper 327-J
  • G30: Gold Plating (30 micro inches)

Notes

STANDARD CONFIGURATIONS

Poles Items Part # Items Part # Length L [mm] Step 3D PDF
01 327-FU/01 11.825.004.EN6 327-FU-HDS/01 31.825.004.EN6 14.50
02 327-FU/02 12.825.004.EN6 327-FU-HDS/02 32.825.004.EN6 29.00
03 327-FU/03 13.825.004.EN6 327-FU-HDS/03 33.825.004.EN6 43.50
04 327-FU/04 14.825.004.EN6 327-FU-HDS/04 34.825.004.EN6 58.00
05 327-FU/05 15.825.004.EN6 327-FU-HDS/05 35.825.004.EN6 72.50
06 327-FU/06 16.825.004.EN6 327-FU-HDS/06 36.825.004.EN6 87.00
07 327-FU/07 17.825.004.EN6 327-FU-HDS/07 37.825.004.EN6 101.50
08 327-FU/08 18.825.004.EN6 327-FU-HDS/08 38.825.004.EN6 116.00
09 327-FU/09 19.825.004.EN6 327-FU-HDS/09 39.825.004.EN6 130.50
10 327-FU/10 20.825.004.EN6 327-FU-HDS/10 40.825.004.EN6 145.00
11 327-FU/11 21.825.004.EN6 327-FU-HDS/11 41.825.004.EN6 159.50
12 327-FU/12 22.825.004.EN6 327-FU-HDS/12 42.825.004.EN6 171.00
