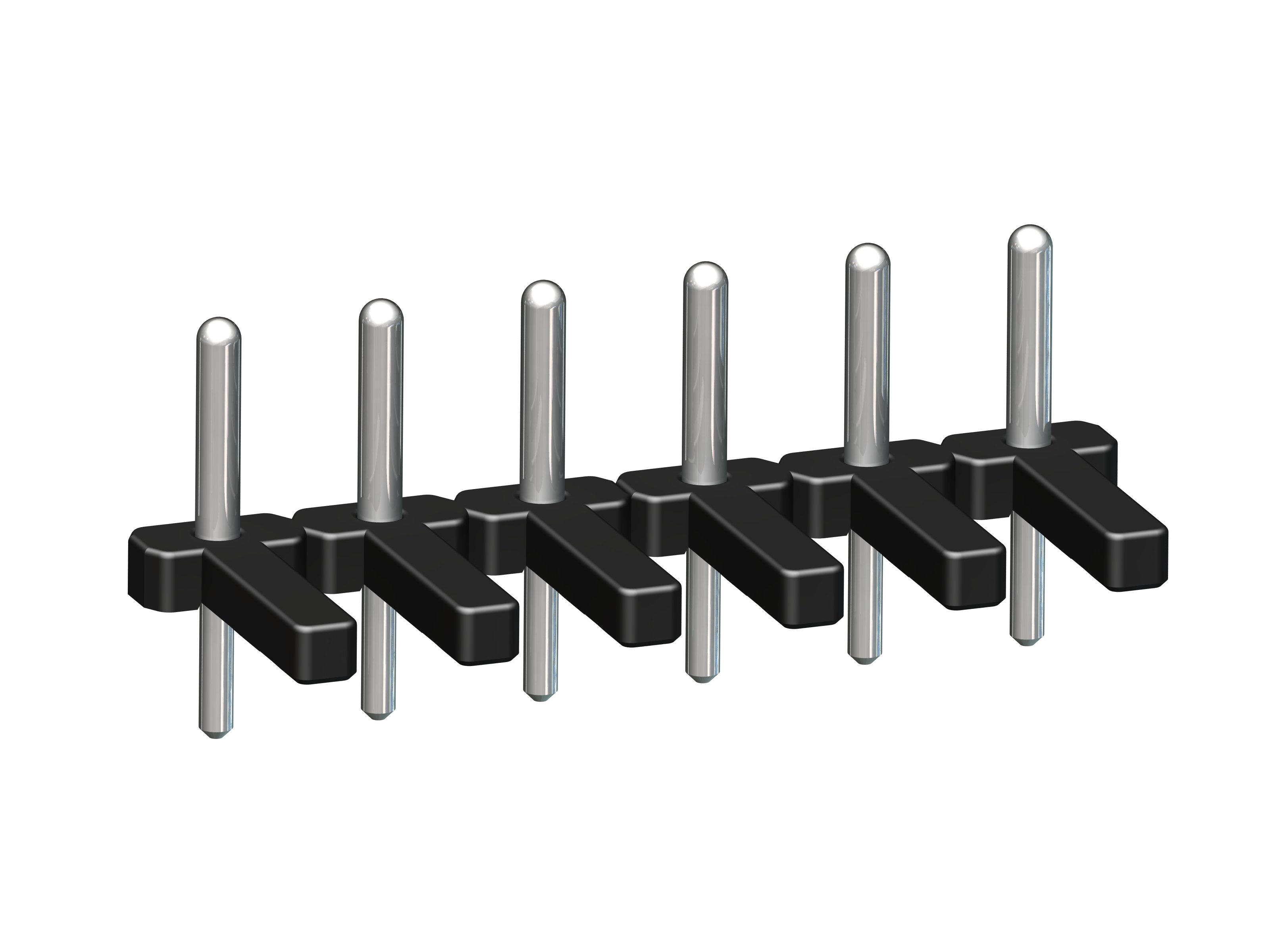

971-SLW

Pin Strip

Soldering area ø 1 mm; plug-in area ø 1.3 mm, with long support


GENERAL INFORMATION

Pitch: 5.00 mm

No. of poles: 2 - 24

Usable with: plugs with 95-FB, 97-FB, FBW, FBS

Additional information: Application tip:In combination with 95-FB or 97-FB series socket connectors. printed circuit boards can be directly connected.

TECHNICAL DATA

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

200 V

320 V

320 V

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated current: 6 A

Hole in PCB: ø 1.3 mm

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
10 300 B
10 300 B
Download PDF How to Order

TECHNICAL DRAWINGS

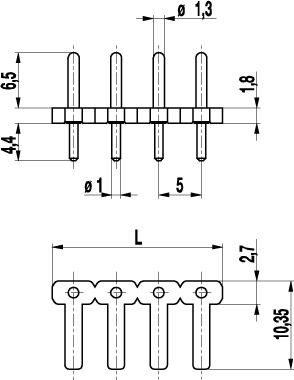

971-SLW.JPG - technical drawing 1

MATERIALS

Moulding: PBTP, black , V-0

Comparative tracking index: CTI 175

Insulating group: IIIa

Temperature range: -40°C up to 100°C

Solder pin: ø 1.3 mm (plug-in area) / ø 1.0 mm (soldering area); tin plated brass

STANDARD CONFIGURATIONS

Poles Items Part # Length L [mm] Step 3D PDF
02 971-SLW/02 12.893.603 10.00
03 971-SLW/03 13.893.603 15.00
04 971-SLW/04 14.893.603 20.00
05 971-SLW/05 15.893.603 25.00
06 971-SLW/06 16.893.603 30.00
07 971-SLW/07 17.893.603 35.00
08 971-SLW/08 18.893.603 40.00
09 971-SLW/09 19.893.603 45.00
10 971-SLW/10 20.893.603 50.00
11 971-SLW/11 21.893.603 55.00
12 971-SLW/12 22.893.603 60.00
13 971-SLW/13 23.893.603 65.00
14 971-SLW/14 24.893.603 70.00
15 971-SLW/15 25.893.603 75.00
16 971-SLW/16 26.893.603 80.00
17 971-SLW/17 27.893.603 85.00
18 971-SLW/18 28.893.603 90.00
19 971-SLW/19 29.893.603 95.00
20 971-SLW/20 30.893.603 100.00
21 971-SLW/21 31.893.603 105.00
22 971-SLW/22 32.893.603 110.00
23 971-SLW/23 33.893.603 115.00
24 971-SLW/24 34.893.603 120.00
