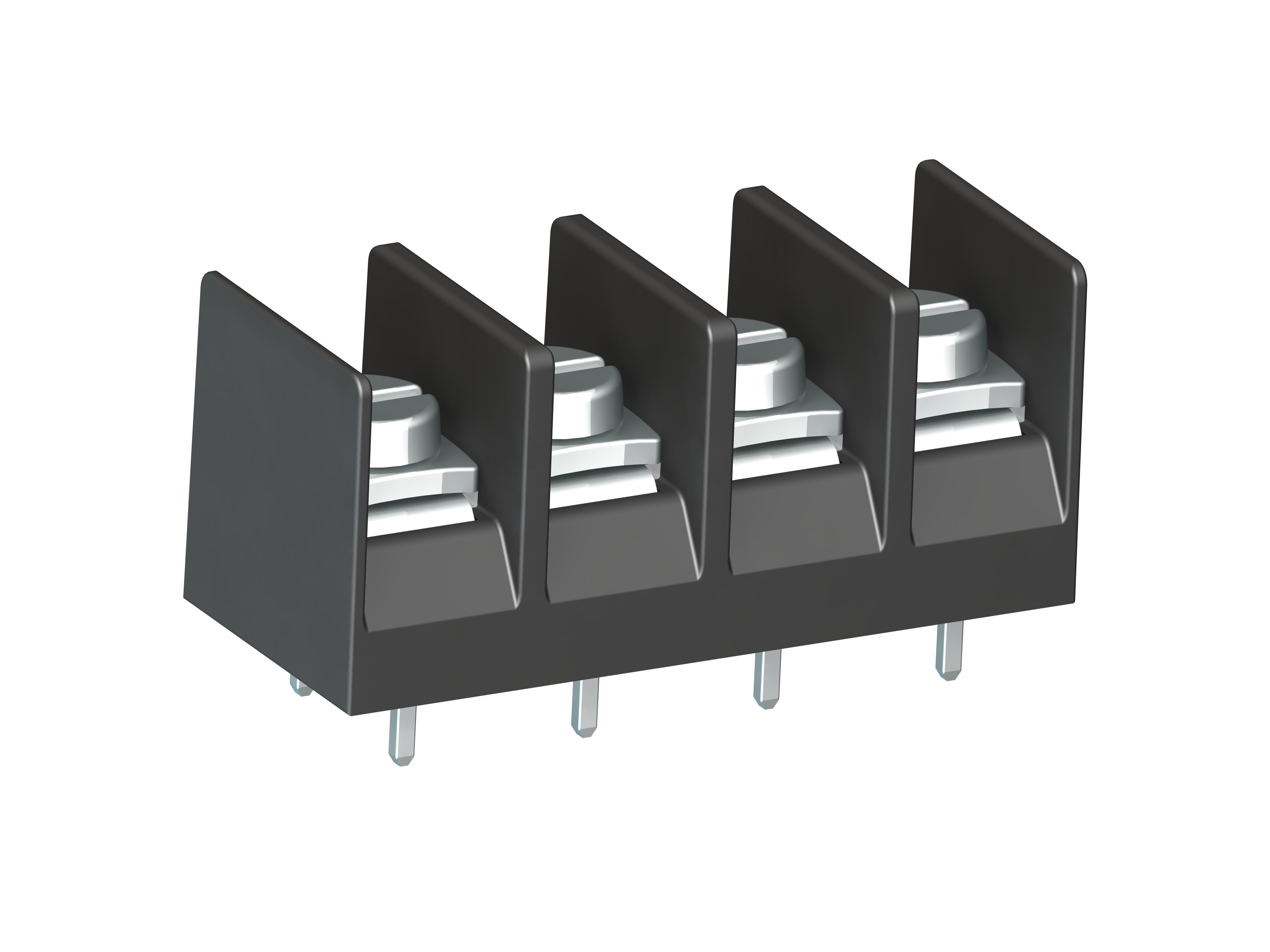

982-D

Barrier Strip Connector

Screw connection, 2 solder pins per pole


DESCRIPTION

The PCB connector 982-D in 9.52 mm pitch is available in 2- to 26-pole design and can be mounted side-by-side in the nominal pitch. This version is equipped with two solder pins per pole. The conductor terminal is of head contact design, whereby the screws and square washers are movably connected. For easier connection, the non-rotably mounted square washers are automatically lifted when the screw is loosened.

GENERAL INFORMATION

Pitch: 9.52 mm

No. of poles: 2 - 26

TECHNICAL DATA

Clamping Range:

solid / flexible / AWG
0.75 - 2.5 mm² / 0.75 - 2.5 mm² / 18 - 12 AWG

Rated cross section: 2.5 mm²

Wire stripping length: 8.5 mm

Over Voltage Category

III

Pollution Severity Level

3

Rated Voltage

320 V

Rated Impulse Voltage

4 kV

Rated current: 24 A

Rated insulation voltage: 450 V acc. to EN 60998-1

Hole in PCB: ø 1.6 mm

Torque: 0.8 Nm

Other specifications: Per pole two conductors of identical cross-section can be connected.

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
20 300 B 20 - 12 0.79
20 300 B 20 - 12 0.79
10 300 D, E 20 - 12 0.79
Download PDF How to Order

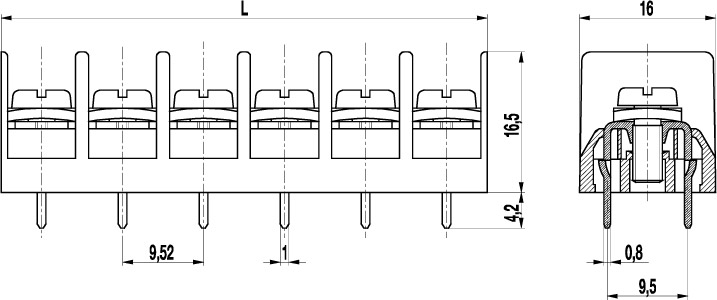

TECHNICAL DRAWINGS

982-D.JPG - technical drawing 1

MATERIALS

Moulding: PA, grey, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 100°C

Pressure clamp: Tin plated brass

Screw: M3,5; zinc plated steel, blue passivated

Solder pin: 0,8 x 1,0 mm; tin plated brass

OPTIONS / ACCESSORIES

  • Consecutive numbering
  • Special marking according to drawing
  • Crosshead screws
  • Cover cap 982-A
  • Securing pins BEF-983
  • Tab connections
  • 10 mm pin length

STANDARD CONFIGURATIONS

Poles Items Part # Length L [mm] Step 3D PDF
02 982-D/02 20.873.702 19.00
03 982-D/03 20.873.703 28.60
04 982-D/04 20.873.704 38.10
05 982-D/05 20.873.705 47.60
06 982-D/06 20.873.706 57.10
07 982-D/07 20.873.707 66.60
08 982-D/08 20.873.708 76.20
09 982-D/09 20.873.709 85.70
10 982-D/10 20.873.710 95.20
11 982-D/11 20.873.711 104.70
12 982-D/12 20.873.712 114.30
13 982-D/13 20.873.713 123.80
14 982-D/14 20.873.714 133.30
15 982-D/15 20.873.715 142.80
16 982-D/16 20.873.716 152.30
17 982-D/17 20.873.717 161.90
18 982-D/18 20.873.718 171.40
19 982-D/19 20.873.719 180.90
20 982-D/20 20.873.720 190.40
21 982-D/21 20.873.721 199.90
22 982-D/22 20.873.722 209.50
23 982-D/23 20.873.723 219.00
24 982-D/24 20.873.724 228.50
25 982-D/25 20.873.725 238.00
26 982-D/26 20.873.726 247.60
