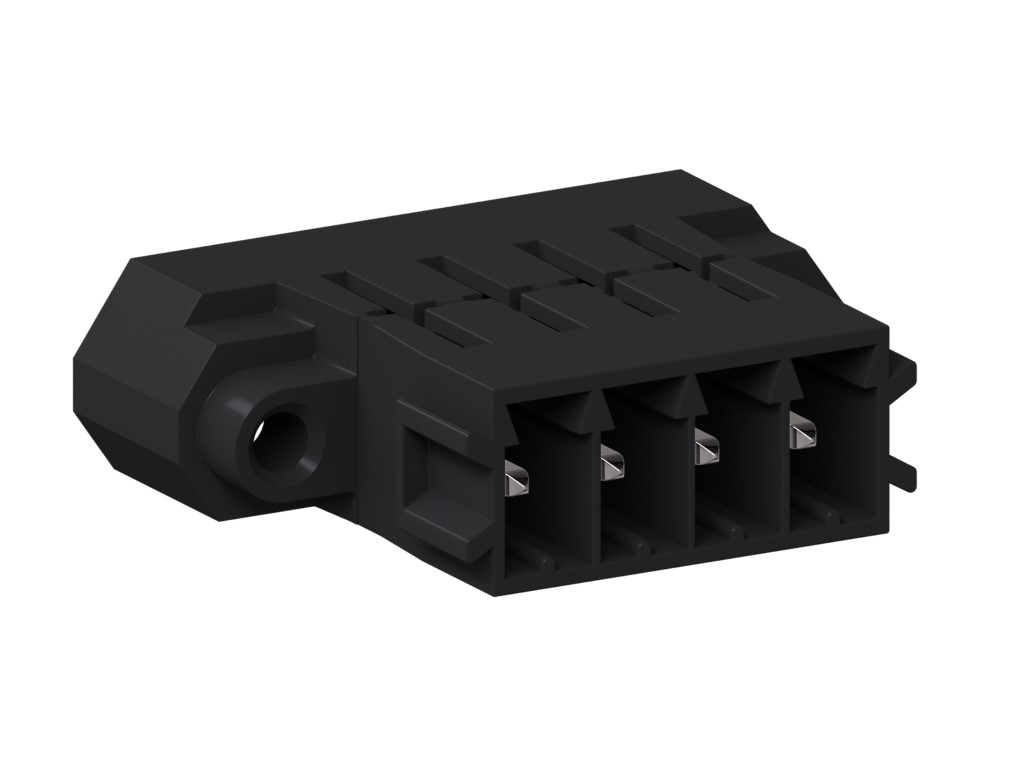

110-M-345 (-R)

Coupler

Connects two plugs together

https://wecoconnectors.com/wp-content/uploads/Images/110-M-345-R.JPG

DESCRIPTION

All couplers are made out of two vertical pin strips 110-M, assembled back to back, with one long pin for both pin strips. This allows plug-in and coding possibilities on each sides. Pin strips with flanges can be fixed together with each other or alternatively with the plug connector by screws. Rotation of one pin strip generates a version where the pole markings of the two plug connectors fit to each other.

GENERAL INFORMATION

Pitch: 3.50 mm

No. of poles: 2 - 12

Usable with: plugs with 110-A-111 series

TECHNICAL DATA

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

160 V

160 V

320 V

Rated Impulse Voltage

2.5 kV

2.5 kV

2.5 kV

Rated current: 8 A

Rated insulation voltage: 130 V acc. to EN 60998-1

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
8 300 B
8 300 B
Download PDF

MATERIALS

Moulding: PA, grey, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 100°C

Solder pin: 0,8 x 0,8 mm; tin plated brass

OPTIONS / ACCESSORIES

  • Consecutive numbering
  • Special marking according to drawing
  • Self-adhesive marking strip BST-3,50
  • Self-Adhesive marking strip BST-3.50

STANDARD CONFIGURATIONS

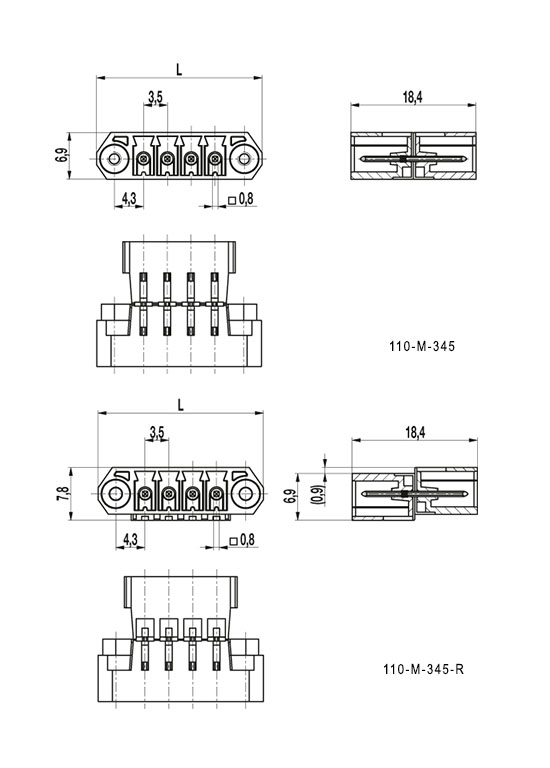

Poles Items Part # Items Part # Length L [mm] Step 3D PDF
02 110-M-345/02 10.841.902 110-M-345-R/02 40.841.902
03 110-M-345/03 10.841.903 110-M-345-R/03 40.841.903
04 110-M-345/04 10.841.904 110-M-345-R/04 40.841.904
05 110-M-345/05 10.841.905 110-M-345-R/05 40.841.905
06 110-M-345/06 10.841.906 110-M-345-R/06 40.841.906
07 110-M-345/07 10.841.907 110-M-345-R/07 40.841.907
08 110-M-345/08 10.841.908 110-M-345-R/08 40.841.909
09 110-M-345/09 10.841.909 110-M-345-R/09 40.841.909
10 110-M-345/10 10.841.910 110-M-345-R/10 40.841.910
11 110-M-345/11 10.841.911 110-M-345-R/11 40.841.911 12
